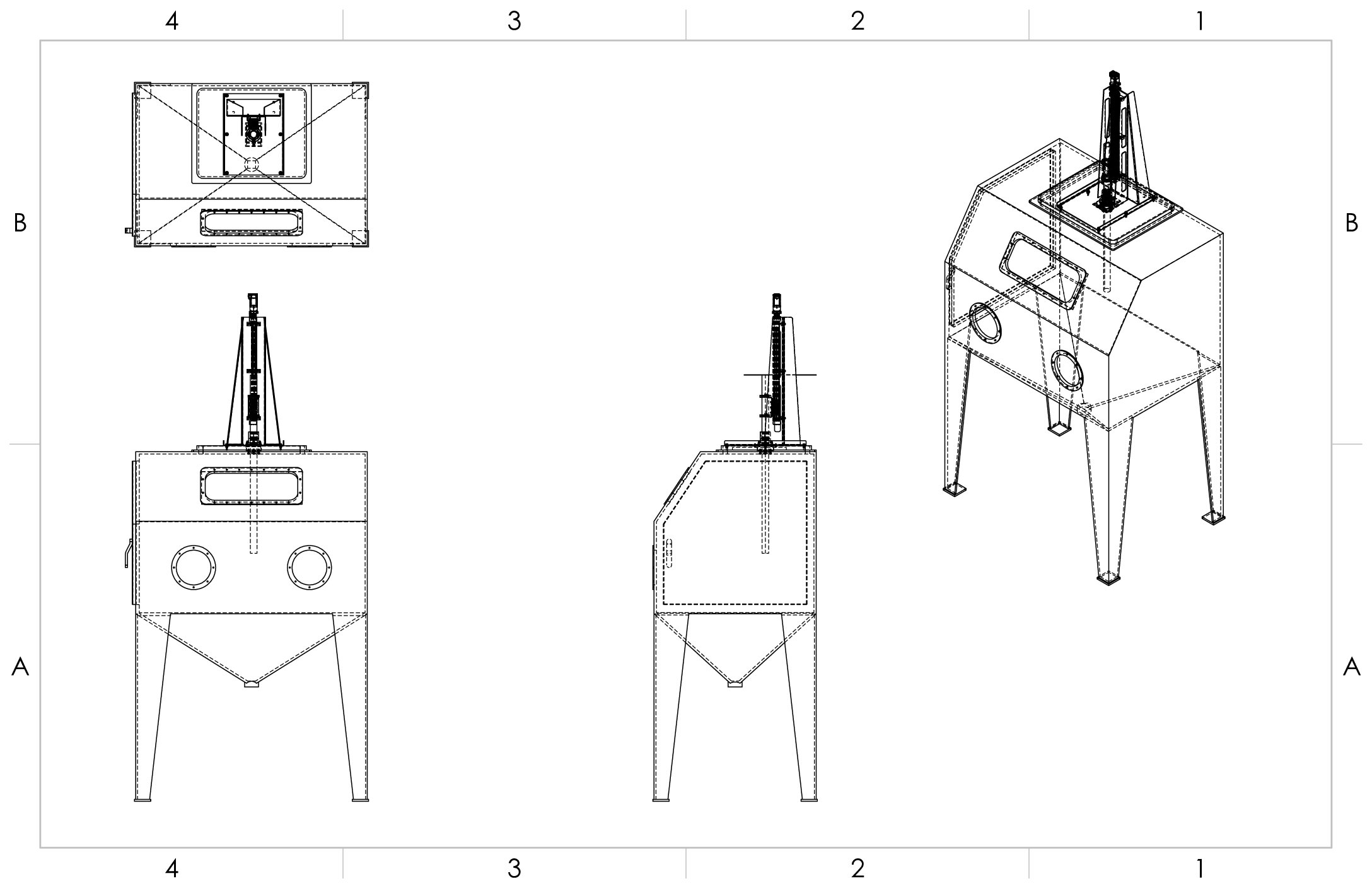

Single Axis Oscillating Hand Blast Cabinet
$14,999.00 – $25,999.00
Single Axis Oscillation Automation Attachment includes:
- Top-mounted flanged painted steel bracket w/ hardware and gasket
- 24″ Oscillator Actuator and Stepper Motor w/ Brake and Overtravel switches
- End of shaft nozzle holder adapter plate (gun bars need to be customer supplied and modified to fit specific brands and types of blasting nozzles)
- Allen-Bradley PLC Control Panel, Extra IO pre-wired to terminal blocks, Emergency Stop circuit, 4″ Color Touch Display, Ethernet Network, Preprogrammed for Blasting Oscillator System
- Blasting Enable solenoid valve and cabling
- (2) Hand Cabinet Door Closed Proximity Switches w/ mounting brackets
- Type B receptacle plug, 20 feet of cable
- User Manual and laminated Quick Start guide
Electrical Requirements: 115/230 VAC, 60/50 Hz, 6 Amps max
Typical Lead Time: 2-3 weeks
***Blast Cabinet not included
CHOOSE PRODUCT OPTIONS BELOW:
Product Description
Automation Ready Blasting introduces the next level of the Blasting and Surface Preparation Automation. Convert your exist hand cabinets or brand new cabinet to be automated. Our automation attachments provide immense value in several ways:
- Reduced upfront cost compared to the blasting manufacturers that want to sell you high cost custom-built machinery.
- Very Fast ROI, usually well under 1 year.
- Repeatable quality
- Higher Productivity
- Touch-up Capable: Leaving the arm holes and gloves in your cabinet allows for hand blasting touch-up after the automated blasting cycle
- Easy Installation
Using your favorite brand or existing blast cabinet, upgrade it now to single axis oscillating blasting automation. Worried about programming? Don’t. The included control panel includes an touchscreen display that allows the operator to adjust the start and stop positions, change the oscillating speed, change the number of blast passes, and jog in manual mode at slow speed with the blast door open (for nozzle alignment and coverage assurance).
PURCHASING NOTES: Hand cabinet not included. Customer to verify form, fit, and function of intended blasting cabinet to be used with this product. Customer responsible for cutting hole in top of cabinet. blast hose routing/mounting, and proper installation. PLC Control Panel to be field located. An automated turntable is highly recommended to help with part reach. PLC Control Panel can control external devices such as turntables and other equipment. Consult with our engineers, electrical drawings, user manuals and PLC technical capabilities to determine the PLC Control Panel’s proper use. PLC control panel comes preprogrammed with a generic movement program. Customer to reprogram per needs immediately post-installation before running the oscillator system for the first time.
Additional Information
| 24" Dia. Automated Turntable (ARB1001) | None, Continuous Turning, Precision Positioning |
|---|
