Self-Teaching Robot Hand Blast Cabinet
$52,119.00 – $106,199.00
Robotic Automation Attachment includes:
- Top-mounted flanged painted steel box w/ hardware and gasket
- Universal Robot arm, electrical controller, and programmed HMI color touchscreen
- End of arm nozzle holder (may need to be customer modified to fit specific brands and types of blasting nozzles)
- (3) Long use disposable robot arm protective boots
- Blasting Enable solenoid valve and cabling
- Type B receptacle plug, 20 feet of cable
- User Manual and laminated Quick Start guide
Electrical Requirements: 115/230 VAC, 60/50 Hz, 6.25 Amps max
Typical Lead Time: 2-3 weeks
***Blast Cabinet not included
CHOOSE PRODUCT OPTIONS BELOW:
Product Description
Automation Ready Blasting introduces the next level of the Blasting and Surface Preparation Automation. Convert your exist hand cabinets or brand new cabinet to be automated. Our automation attachments provide immense value in several ways:
- Reduced upfront cost compared to the blasting manufacturers that want to sell you high cost custom-built machinery.
- Very Fast ROI, usually well under 1 year.
- Repeatable quality
- Higher Productivity
- Touch-up Capable: Leaving the arm holes and gloves in your cabinet allows for hand blasting touch-up after the automated blasting cycle
- Inherently Safe: Cobots (Collabrative Robots, such as this Universal Robot) have safety features built in the allows the robot to “go limp” if it bumps into anything, including an operator.
- Easy Installation
Using your favorite brand or existing blast cabinet, upgrade it now to full robotic automation. Worried about programming robots? Don’t. These simple self-teaching robots allow you to grab the end of the robot arm, press the record button on the robot pendant, move the robot arm around using your hand the way you want the robot to move, then press stop. The robot will now run the way you just taught it, no programming required. Simple! Please watch this quick video to see it in action:
How to program a path for a Universal Robot
PURCHASING NOTES: Hand cabinet not included. Customer to verify form, fit, and function of intended blasting cabinet to be used with this product. Customer responsible for cutting hole in top of cabinet. blast hose routing/mounting, and proper installation. Robot electrical controller to be field located. An automated turntable is highly recommended to help with part reach. Robot can control external devices such as turntables and other equipment. Consult with the Robot user manual and technical capabilities to determine the electrical controller’s proper use. Robot comes preprogrammed with a generic movement program. Customer to reprogram per needs immediately post-installation before running the robot for the first time.
Additional Information
| Robot (Reach / Blast Pressure) | 19.7 INCH / 40-50 PSI, 33.5 INCH / 50-60 PSI, 51.2 INCH / 60-80 PSI, 68.9 INCH / 80-100 PSI |
|---|---|

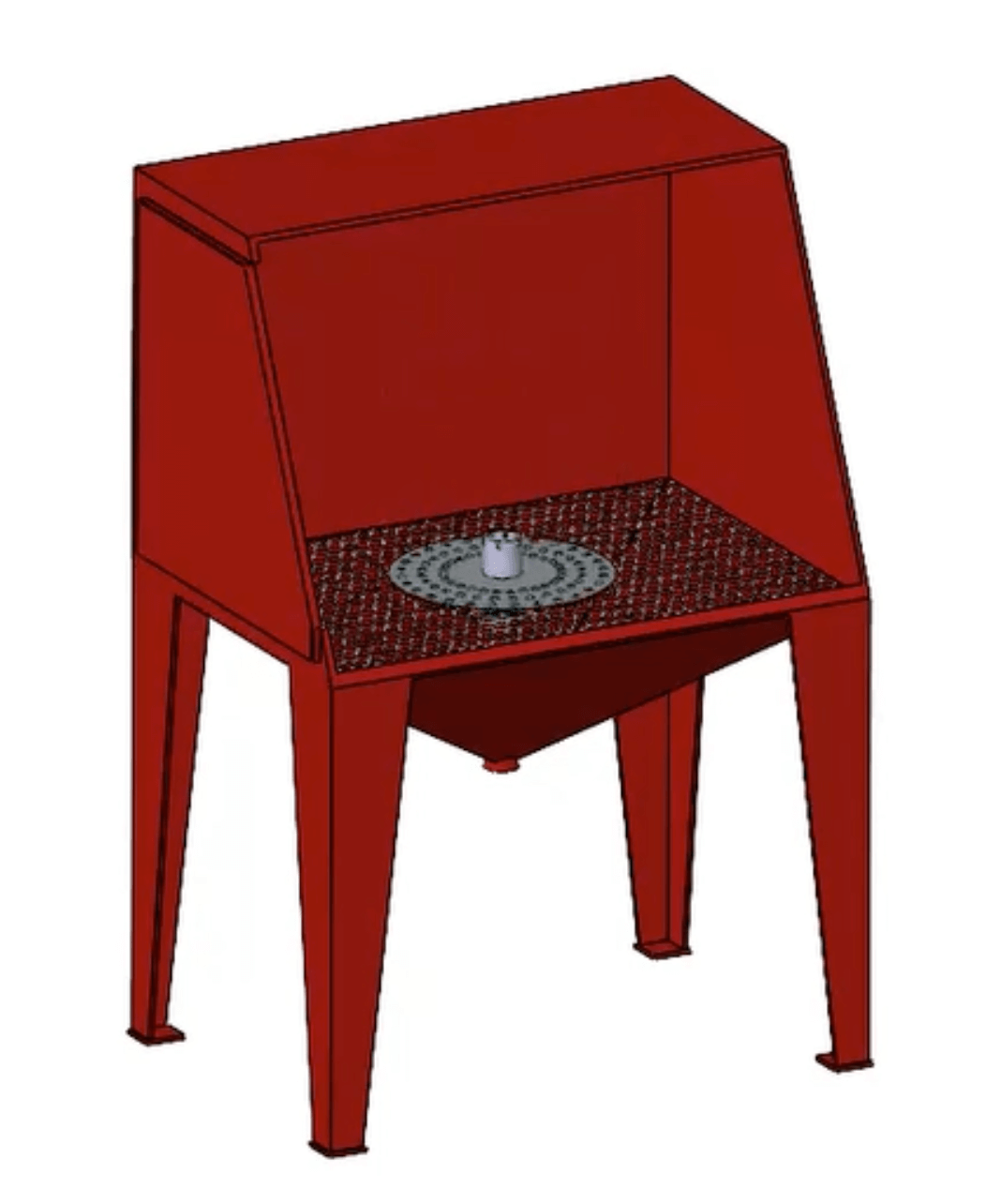

| 24" Dia. Automated Turntable (ARB1001) | None, Continuous Turning, Precision Positioning |
